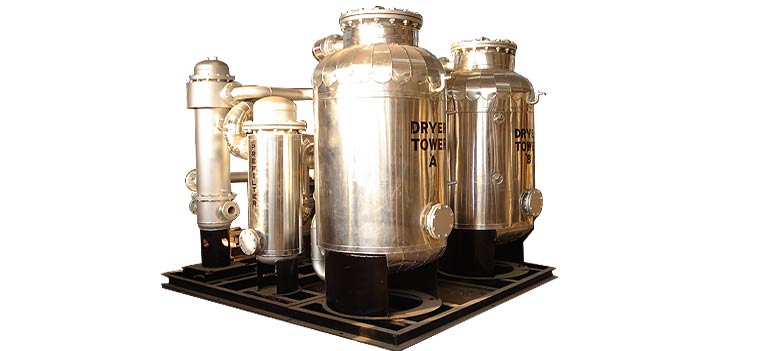

Heat of Compression Type Air Dryers
In Heat of Compression Type Air Dryers, directly from Air compressor discharge is taken to Air dryer inlet through insulated pipelines, at 120oC (minimum) temperature. This hot air is passed through one drying vessel where saturated desiccant is regenerated by this hot air. After picking up moisture from desiccant bed, the air is cooled in an intermediate cooler. Here moisture is condensed and removed by auto drain valve. Cooled to 40oC, this air passes through the second drying vessel where balance moisture gets adsorbed and Dry air comes out. Cycle time is 4 hours regeneration & 4 hours drying. After 4 hours the changeover of vessels takes place automatically. In regeneration cycle heating of the bed is only 2 hours, and thereafter the bed is cooled by Dry air. After bed cooling, Dry air is again cooled to 40oC in another cooler, and delivered out of unit as Dry air at 40oC temp. The Dryer is fully automatic with pneumatically actuated Ball/ plug valves. A sequence timer controls operation of these valves. Desiccant used is Activated Alumina and it dries the air up to (-) 40oC Dew point.
We welcome your enquiry & try to respond in shortest possible time Yes! I am Interested
Technical Specifications
| Air Capacity | 500 to 6000 NM3 / Hr. |
| Dew Point | up to (-) 60oC. |
Salient Features
- Easy maintenance
- Trouble free operation
- Longer life of desiccants
- Fully automatic operation
- Low pressure drop
- Highly efficient as there is no loss of compressed air
